Product Details
＋

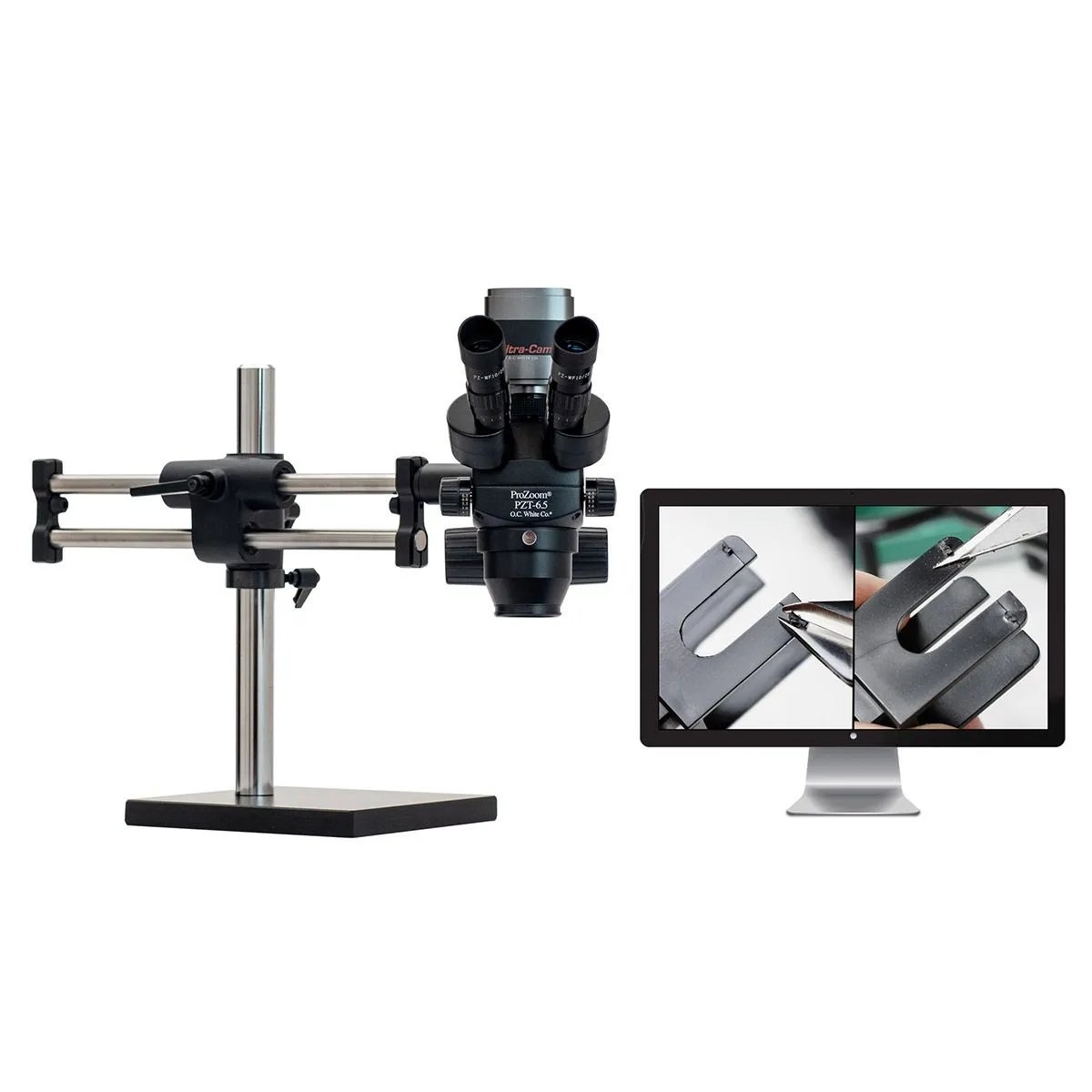

The ProZoom® family outperforms stereo microscopes costing twice as much. ProZoom 6.5 provides the largest standard working distance, the largest magnification range, and largest eyepieces available on a modern stereo microscope. ProZoom® 6.5 Trinocular Microscope featuring Super-Wide (28mm) 10x Eyepieces. Standard Magnification Range of 5.0-65x (up to 390x with options). 0.3x CCD Camera Adapter. New 6MP Hybrid HDMI/USB Digital Camera and Sleek 22" HD LED Monitor. Heavy Duty Ball Bearing Base Included; Light is not. Compatible with all Micro-Lite® Illuminators. (Shown with optional Micro-Lite® LV2000-B). ESD-Safe
- Super-Wide (28mm) 10x Eyepieces
- ESD-Safe Standard
- Standard Range 5.0-65x (up to 390x with optional parts)
- 0.3x CCD Adapter
- 6MP Ultra-Cam™ II Hybrid HDMI/USB Digital Camera with Advanced Imaging & Measurement Software Suite and 22" LCD Monitor
- AIMS includes on-screen controls via wireless mouse for Image/Video Capture, Live vs. Frozen Image comparison, Calibrated Measurement, Labeling, Digital Noise Reduction, Export to Excel, and more
- Includes Exclusive PC suite software extension combines all features listed above, along with Extended Depth of Field Stacking, Image Stitching, and more (PC needed)
- ±6 Diopter Adjustable eyepieces to correct individual eyesight variations
- Greater working distance, Magnification range, and Field of View than a traditional microscope
- Micro-Lite® LV2000-B LED Ring Light
| Eyepiece | Main Body | 0.37x PZ-OB-037 | 0.5x PZ-OB-050 | 0.7x PZ-OB-070 | 1.0x PZ-OB-100 | 2.0x PZ-OB-200 | |
|---|---|---|---|---|---|---|---|
| 10x | MAG: | 10 - 65x | 3.7 - 24.1x | 5.0 - 32.5x | 7.0 - 64x | 10 - 65x | 30 - 130x |
| FOV: | 23 - 3.5mm | 62.2 - 9.6mm | 46 - 7.0mm | 32.9 - 5.0mm | 23 - 3.5mm | 11.5 - 1.8mm | |
| 15x | MAG: | 15 - 97.5x | 5.55 - 36.1x | 7.5 - 48.8x | 10.5 - 69x | 15 - 97.5x | 30 - 195x |
| FOV: | 17 - 2.6mm | 45.9 - 7mm | 34 - 5.2mm | 24.3 - 3.7mm | 17 - 2.6mm | 8.5 - 1.3mm | |
| 20x | MAG: | 20 - 130x | 7.4 - 48.1x | 10 - 65x | 14 - 92x | 20 - 130x | 40 - 260x |
| FOV: | 14 - 2.2mm | 37.8 - 5.8mm | 28 - 4.2mm | 20 - 3.1mm | 14 - 2.2mm | 7 - 1.1mm | |
| 30x | MAG: | 30 - 195x | 30 - 195x | 11.1 - 72.2x | 21 - 138x | 30 - 195x | 60 - 390x |
| FOV: | 9 - 1.4mm | 24.3 - 3.7mm | 18 - 2.7mm | 12.9 - 2mm | 9 - 1.4mm | 4.5 - 0.7mm | |
| Working Distance | 118mm | 275mm | 195mm | 145mm | 110mm | 35mm | |
