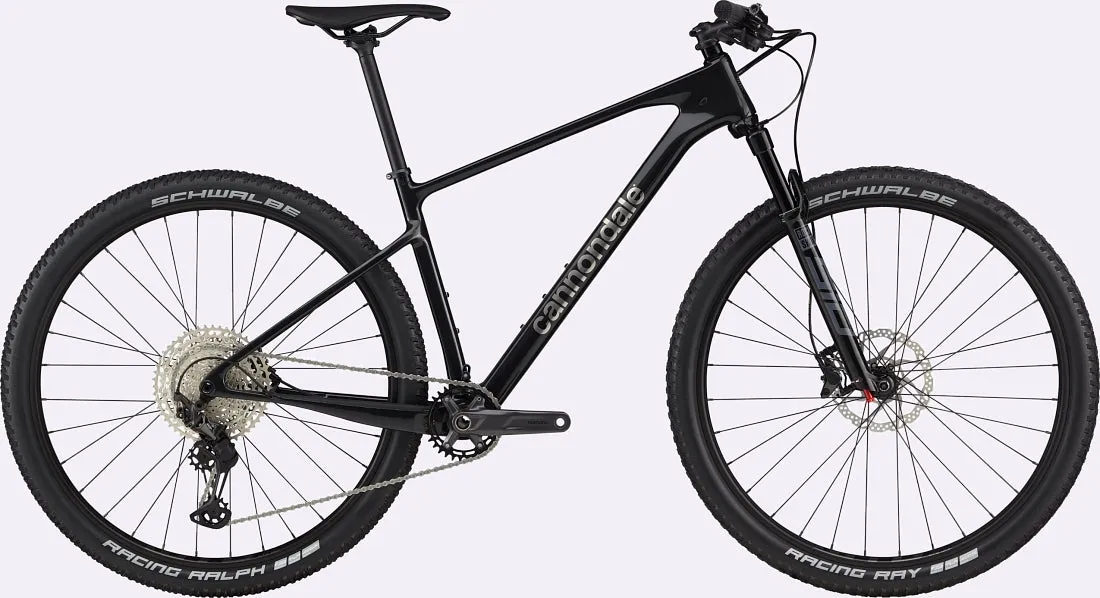

Name: CANNONDALE Scalpel Ht Carbon 4
SKU: 2275660

Product Details ＋

The Purest Form of Racing.

A whole new breed of XC Hardtail, purpose built to hurt ‘em on the ups, drop ‘em on the downs and propel you straight to the top step.

Where it thrives

Between the tape

What it's built for

Speed, Efficiency, and Endurance

Highlights

Progressive, superlight carbon frame / RockShox SID SL 100mm fork
Shimano XT/Deore 12-speed group / Shimano M500 disc brakes
WTB STX i23 tubeless ready rims / Schwalbe Racing Ray-Racing Ralph EVO tires

The purest form of racing

Confidence on edge

No hesitant, fistful-of-brakes descending here. The ultra slack, 66.5° front end gives you the stability and control you need to really open it up on the downhills. Brake later. Corner harder. Pass on the descents.

Stay centered

Scalpel HT’s Proportional Response size-specific chainstays and steep seat angle keep you balanced between the wheels for better traction and power on the ups, and more confident control on the downs.

SPECIFICATION:

DETAILS

Platform
Model Name
Scalpel HT Carbon 4
Model Code
C25401U

FRAMESET

Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Fork
RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings

DRIVETRAIN

Rear Derailleur
Shimano XT
Shifters
Shimano Deore M6100, 12-speed
Chain
Shimano Deore, 12-speed
Crank
Shimano M5121, 30T, 55mm chainline
Rear Cogs
Shimano Deore M6100, 10-51, 12-speed
Bottom Bracket
Cannondale Alloy PressFit 30 - 24mm

BRAKES

Brakes
Shimano MT501 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano MT500 hydraulic disc

WHEELS

Rims
WTB STX i23, 32h, tubeless ready
Spokes
DT Swiss Champion 2.0
Tire Size
2.25
Wheel Size
29
Hubs
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix compound, tubeless ready
Front Tire
Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready
Rear Tire
Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready

COMPONENTS

Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Grips
Cannondale TrailShroom
Saddle
Cannondale Scoop Shallow Sport, steel rails
Seatpost
C3 Alloy, 27.2x400mm

Geometry
