| Type: |

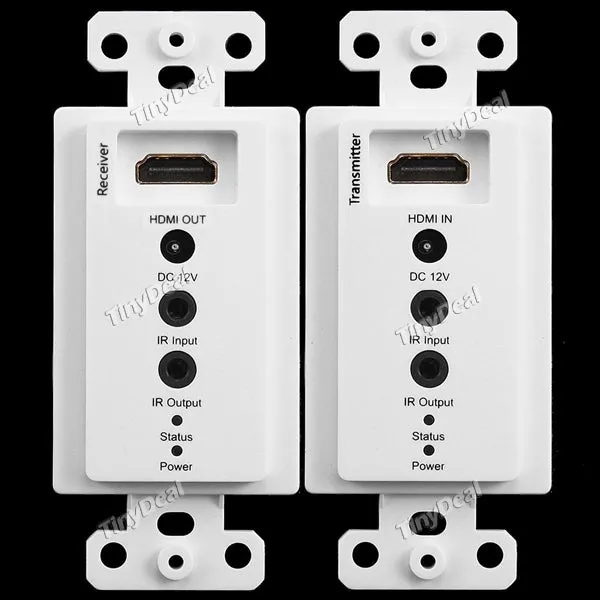

HDMI Extender |
| Gender: |
Female-Female |
| Transmitter Interface |
HDMI input, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 12V DC in |
| Receiver Interface |
HDMI output, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 12V DC in |
| Power |
|
| Video bandwidth |
Maximum TMDS clock frequency 165MHz,4.95Gbps |
| Resolution and distance |
1080P--170ft (50 meters)-CAT5e/ 270ft (80 meters)-CAT6 720P/1080i--270ft (80 meters)-CAT5e/ 330ft (100 meters)-CAT6 |
| Audio formats |
8-channel, support Dolby True HD and DTS Master |
| TMDS input signal |
1.2 volts (point to point) |
| DDC input signal |
5 volts (point to point) |
| Indicator |
Power-green, video link-yellow |
| HDMI interface standard |
HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID |
| Remote IR |
38KHz |
| ESD level |
HBM ±8 kV (Contact Discharge) |
| Temperature range Compliance |
0 ~ 40°C (operation), -20~60°C(stock) |
| Net Weight: |
118 g / 4.16 oz |
| Size: |
71.5 x 45 x 34 mm / 2.7885 x 1.755 x 1.326 inch |
| Warning: |
The CAT5e/6 cable can not be placed underground, outdoor, and between buildings. It must be placed with extenders indoor. |
